In GLMakie how to place two checkboxes overlaid on an image

It is possible to place two checkboxes overlaid on an image using GLMakie?

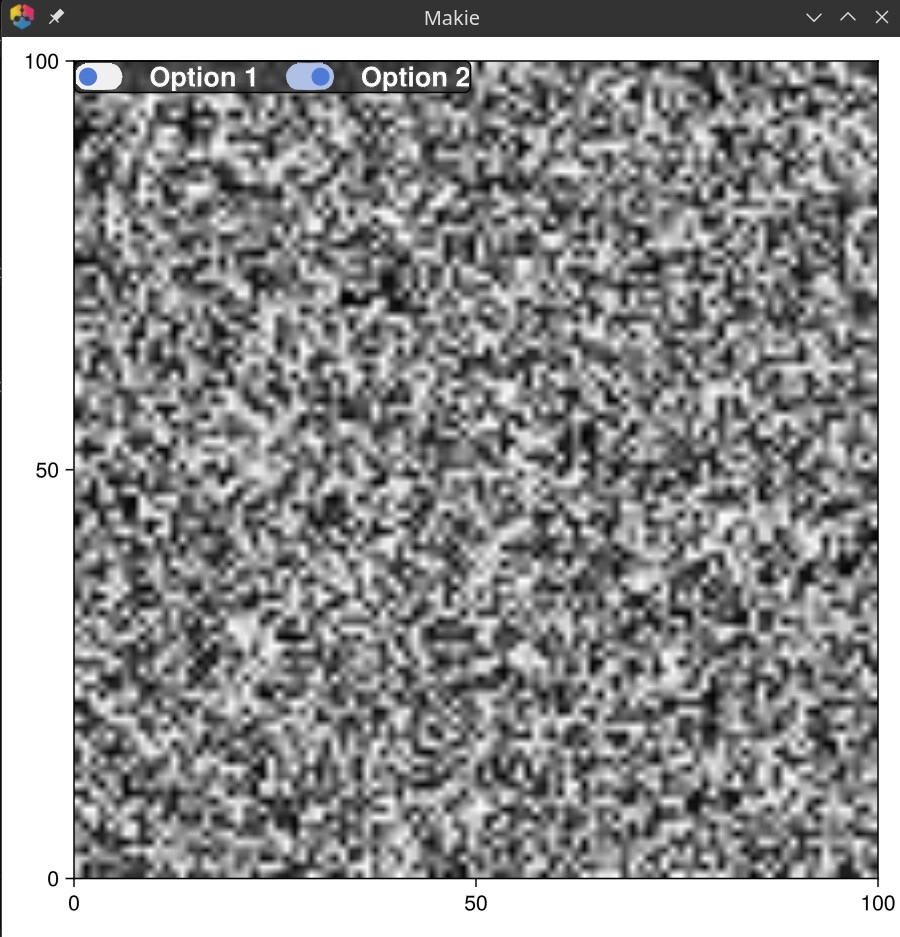

Yes:

using GLMakie

# Create a figure with an image
fig = Figure(size=(600, 600))
ax = Axis(fig[1, 1])

# Display an image (you can use your own image)
test_img = rand(100, 100)
image!(ax, test_img)

# Create a single layout with both checkboxes side by side
gl = GridLayout(fig[1, 1], tellwidth=false, tellheight=false,
                halign=:left, valign=:top)

# Add background box
box = Box(gl[1, 1:4], color=RGBAf(0.2, 0.2, 0.2, 0.8), cornerradius=4)

# Add padding around the content
rowgap!(gl, 20)
# colgap!(gl, 20)

# First checkbox
toggle1 = Toggle(gl[1, 1], active=false)
label1 = Label(gl[1, 2], "Option 1", halign=:left, font=:bold, fontsize=18, color=:white)

toggle2 = Toggle(gl[1, 3], active=true)
label2 = Label(gl[1, 4], "Option 2", halign=:left, font=:bold, fontsize=18, color=:white)

# React to toggle changes
on(toggle1.active) do state
    println("Toggle 1 is now: ", state)
end

on(toggle2.active) do state
    println("Toggle 2 is now: ", state)
end

display(fig)
