As a follow up to my previous post and a response to @RoyiAvital’s message to me, here’s a way to do Proportional Navigation.

using Plots, DifferentialEquations, LinearAlgebra

##
# Parameters
N = 5.0

# Target:
r⃗ₜ(t) = [ cos(t); sin(t); 0]
v⃗ₜ(t) = [-sin(t); cos(t); 0] # TODO: derive automatically?

#Define the problem
function propnav(a⃗ₘ, v⃗ₘ, r⃗ₘ, N, t)
    R⃗ = r⃗ₜ(t) - r⃗ₘ          # displacement vector from missle to target
    v⃗ₚ = v⃗ₜ(t) - v⃗ₘ         # relative velocity from missle to target
    Ω⃗ = (R⃗ × v⃗ₚ) ./ (R⃗⋅R⃗)   # rotation vector

    a⃗ₘ .= -N * norm(v⃗ₚ) * cross((R⃗ / norm(R⃗)), Ω⃗)
end

#Initial Conditions
x₀ = [0.0, 0.0, 0.0]
dx₀ = [1.0, 0.0, 0.0]
tspan = (0.0, 1.0)

#Pass to solvers
prob = SecondOrderODEProblem(propnav, dx₀, x₀, tspan, N)
sol = solve(prob, Tsit5(), saveat=0.01)

#Plot
missledata = hcat(sol.u...)'
v⃗ₘx = missledata[:,1]
v⃗ₘy = missledata[:,2]
v⃗ₘz = missledata[:,3]
r⃗ₘx = missledata[:,4]
r⃗ₘy = missledata[:,5]
r⃗ₘz = missledata[:,6]

targetpath = hcat(r⃗ₜ.(sol.t)...)'
r⃗ₜx =  targetpath[:,1]
r⃗ₜy =  targetpath[:,2]

plot( r⃗ₜx, r⃗ₜy, lw = 5.0 .* sol.t, label="Target")
plot!(r⃗ₘx, r⃗ₘy, lw = 5.0 .* sol.t, label="Missile")

##
@userplot PursuitPlot
@recipe function f(cp::PursuitPlot)
    t, x, y, i = cp.args
    n = length(x)
    linewidth --> range(0.75, 10, length = i)
    aspect_ratio --> 1
    x[1:i], y[1:i]
end

n = length(sol.t)

anim = @animate for i ∈ 2:n
    pursuitplot(sol.t, r⃗ₜx, r⃗ₜy, i, label="Target")
    pursuitplot!(sol.t, r⃗ₘx, r⃗ₘy, i, label="Missile")
    plot!(leg=:topleft)
end
gif(anim, "test.gif", fps = 15)

I’m sure there’s a more elegant way to do this but it’s at least a start. I noticed some solvers struggle with instability at the time where the missile and target would collide which makes sense.

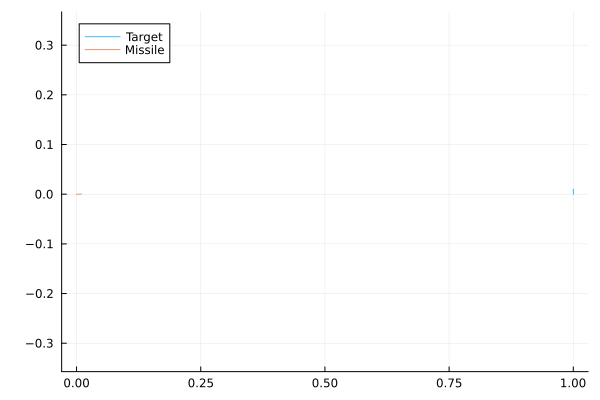

proportional_navigation_animation
