Choosing suitable options for solver ODE

Hello everyone, I want about the most suitable ODE solver for the following problem:


using DifferentialEquations
using Plots; plotly()

#Parameters

omega_m     = 1.6e6
N           = 1
Delta_mw    = -0.7
g0          = 3.6e3#/omega_m
g_eff       = (g0/sqrt(N))
Gamma       = 60000#/omega_m
Gamma_tilde = 0.0
Omega_mw    = 0.7
Q           = 2*(10^5)
gamma_m     = (omega_m/Q) #/ omega_m
N_th        = 6.05
Angle_th    = 0;
tau         = (Gamma/(g_eff^2));
#omega_m     = 1

function mean_field(du,u,p,t)


    #p[1]=Delta_mw
    #p[2]=Omega_mw

    Sx     =u[1]
    Sy     =u[2]
    Sz     =u[3]
    alpha_x=u[4]
    alpha_y=u[5]

    du[1] =  (Delta_mw-4*g_eff*u[4])*u[2]                 - (Gamma+Gamma_tilde)*u[1]
    du[2] = -(Delta_mw-4*g_eff*u[4])*u[1]  -Omega_mw*u[3] - (Gamma+Gamma_tilde)*u[2]
    du[3] =                                 Omega_mw*u[2] - 2*Gamma*(u[3]+N)
    du[4] =  omega_m*u[5]                                 - (gamma_m /2)*u[4]
    du[5] = -omega_m*u[4]                  -g_eff*u[3]    - (gamma_m /2)*u[5]




    #du[1] =  (p[1]-4*g_eff*alpha_x)*Sy          - (Gamma+Gamma_tilde)*Sx
    #du[2] = -(p[1]-4*g_eff*alpha_x)*Sx -p[2]*Sz - (Gamma+Gamma_tilde)*Sy
    #du[3] =                             p[2]*Sy - 2*Gamma*(Sz+N)
    #du[4] =  omega_m*alpha_y                    - (gamma_m /2)*alpha_x
    #du[5] = -omega_m*alpha_x - g_eff*Sz         - (gamma_m /2)*alpha_y

    end


function Result_lim(Array_sol)

    print((Array_sol[2][4])^2+(Array_sol[2][5])^2,"     ")
end

#Initial state

u0 = [0;0;-N;sqrt(N_th);0];
time= 100*tau

function Quanta_fin(Delta_mw,Omega_mw)

    parameters=[Delta_mw ;Omega_mw ]
    tspan = (0.0,time)
    prob = ODEProblem(mean_field,u0,tspan,parameters)   #,parameters)

    Val1=1e-6
    Val2=1e-6
    Iter=1e14
    dt_size=1e-7

    sol1 = solve(prob,RK4(),dt=dt_size,save_everystep=false,reltol=Val1,abstol=Val2,MaxIters=Iter)
    sol2 = solve(prob,alg_hints=[:stiff],dt=dt_size,reltol=Val1,abstol=Val2,save_everystep=false,MaxIters=Iter)
    sol3 = solve(prob,Rodas4() ,dt=dt_size,reltol=Val1,abstol=Val2,save_everystep=false,MaxIters=Iter)
    sol4 = solve(prob,EulerHeun() ,dt=dt_size,reltol=Val1,abstol=Val2,save_everystep=false,MaxIters=Iter)
    sol5 = solve(prob,OwrenZen5() ,dt=dt_size,reltol=Val1,abstol=Val2,save_everystep=false,MaxIters=Iter)
    sol6 = solve(prob,TanYam7() ,dt=dt_size,reltol=Val1,abstol=Val2,save_everystep=false,MaxIters=Iter)
    sol7 = solve(prob,alg_hints=[:nonstiff] ,dt=dt_size,reltol=Val1,abstol=Val2,save_everystep=false,MaxIters=Iter)


    Array_sol1=sol1.u
    Array_sol2=sol2.u
    Array_sol3=sol3.u
    Array_sol4=sol4.u
    Array_sol5=sol5.u
    Array_sol6=sol6.u
    Array_sol7=sol7.u


    Result_lim(Array_sol1)
    Result_lim(Array_sol2)
    Result_lim(Array_sol3)
    Result_lim(Array_sol4)
    Result_lim(Array_sol5)
    Result_lim(Array_sol6)
    Result_lim(Array_sol7)


    end


Quanta_fin(-Delta_mw,Omega_mw)

I tried to use multiple solvers and even I decreased the step size and increased the number of iterations and as you can see the results are different (Rodas4() and alg_hints=[:stiff] have similar values), the main problem relies long time needed to achieve the steady state dynamics. That is why I want to ask how can I change the options of the solver to obtain a reliable solution and predict properly the steady state of the system. Thanks.

If you have a lower error tolerance for the solution, then decrease the error tolerance. And this would run hundreds of times faster if you didn’t use non-constant globals.

1 Like

I added this example to my new analysis package: bradcarman/ModelingToolkitTolerances.jl: A package to help determine abstol and reltol when using ModelingToolkit.jl and DifferentialEquations.jl

See ModelingToolkitTolerances.jl/examples/777843.jl at main Β· bradcarman/ModelingToolkitTolerances.jl for a detailed analysis of a few solvers. Finding the right solver still requires a lot of knowledge, but with this package it helps to quickly explore solver choices along with a variation in tolerance settings to more quickly locate the best option. Here I find that Rodas4 does the best, with a max residual of 0.176 at abstol=1e-9 and reltol=1e-12.

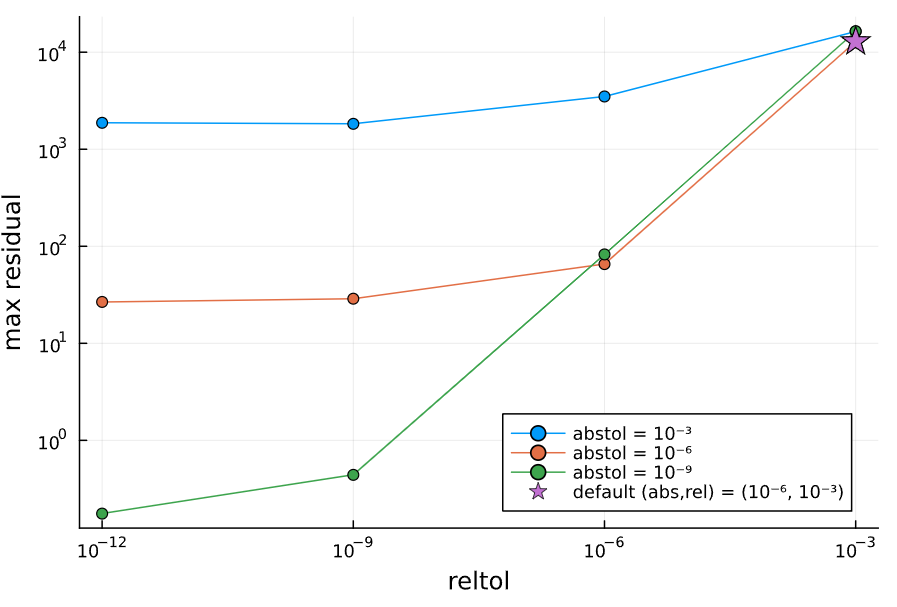

Here is what the Rodas4 analysis looks like…

β”Œβ”€β”€β”€β”€β”€β”€β”€β”€β”¬β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”¬β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”¬β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”¬β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”
β”‚ abstol β”‚ reltol = 0.001 β”‚ reltol = 1.0e-6 β”‚ reltol = 1.0e-9 β”‚ reltol = 1.0e-12 β”‚
β”œβ”€β”€β”€β”€β”€β”€β”€β”€β”Όβ”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”Όβ”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”Όβ”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”Όβ”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€
β”‚  0.001 β”‚        16310.4 β”‚         3496.79 β”‚         1827.51 β”‚          1872.54 β”‚
β”‚ 1.0e-6 β”‚        12888.2 β”‚          65.512 β”‚          28.823 β”‚          26.6936 β”‚
β”‚ 1.0e-9 β”‚        16463.4 β”‚         82.4328 β”‚        0.440874 β”‚         0.175769 β”‚
β””β”€β”€β”€β”€β”€β”€β”€β”€β”΄β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”΄β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”΄β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”΄β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”˜

Here is what the result looks like with the optimal settings…
